R35K SERIES BOARD-TO-BOARD NARROW (FINE) PITCH CONNECTORS (0.35 MM PITCH)





The Ideal Choice For The Connection Of Small, Battery-Powered Devices
Panasonic, a worldwide leader in Connector Products,

introduces the NEW R35K Series of Narrow Pitch Connectors.

The NEW R35K Series is an ultra-small 0.35mm pitch socket and

header Connector pair that is available in a 4-pin solution.

This Connector uses power terminals on each end of the Connector

to transmit 3A continuous current allowing for the connection of small

Battery powered devices.

The inner pins of the Connector are each rated 300mA for carrying signal

as well.



The NEW R35K Series Connector also maintains the Panasonic unique

Tough Contact Construction consisting of bellowed contacts for shock and

vibration resistance and v-notch construction shape which maintains 2 points

of contact between socket and header pins.

The robust structure and balancing of small size and high current capability makes

the NEW R35K Series ideal for lightweight Battery powered devices such as smart

watches, hearing aids and headphones.


R35K(0.35MM PITCH)

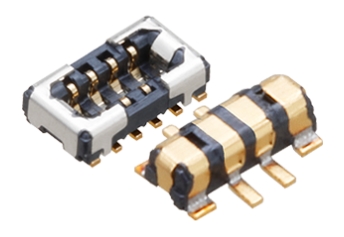

Panasonic’s R35K Narrow (Fine) Pitch Connector Series is an ultra-small 0.35mm pitch

socket and header Connector pair that is available in a 4-pin solution.

This Connector series uses power terminals on each end of the Connector to transmit

3A continuous current allowing for the connection of small Battery powered devices.

The inner pins of the Connector are each rated 300mA for carrying signal as well.


The R35K Series Connectors also maintain the Panasonic unique Tough Contact

construction consisting of bellowed contacts for shock and vibration resistance and

v-notch construction shape which maintains 2 points of contact between socket and

header pins.

The robust structure and balancing of small size and high current capability makes

the R35K Series ideal for consumer and industrial lightweight battery-powered device

applications and various sensor module connections.

Features and Benefits:



● Small Size: Very Small Surface Area Footprint Of 1.3mm x 2.24mm (4-Pins)
● Low Profile: Mated Height 0.6mm
● High Current Capability: Two (2) Power Pins to Support 3A Each for Power and

 0.3A for the Signal Pins
● High Retention Force: Unique Locking Structure Allows High Retention Force

with a Small Footprint
● Panasonic Tough Contact Construction
● Robust Structure: Panasonic’s Insert Molded Metal Bracket Frame Around

 the Side of the Connector Provides Higher Mechanical Strength
● RoHS / REACH Compliant







R35K_datasheet.pdf
