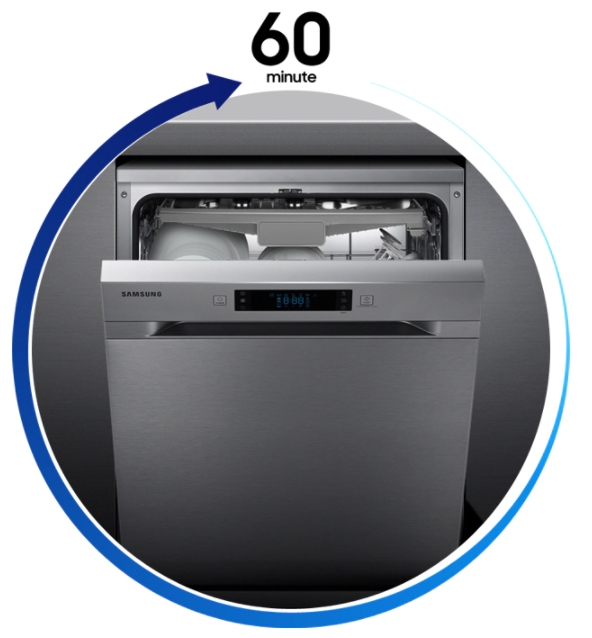

Save time with 60-minute wash & dry



Dishwasher user manual



DD81-02437J_DW5500MM_SENZ_User_Manual.pdf





Contents

PARTS AND FEATURES
10 Dishwasher features
12 Control panel
15 Displays

USING THE DETERGENT AND RINSE
17 Using detergent
18 Using rinse aid
19 How to use the Multi tap option


LOADING THE DISHWASHER RACKS
20 Loading the upper basket
22 Loading the lower basket
22 Folding spikes of lower basket
23 Cutlery(silverware) tray
25 For washing in the dishwasher the following cutlery/dishes

WASHING PROGRAMMES
26 Turning on the appliance
26 Change the programme
27 At the end of the wash cycle
27 Wash cycle table


CLEANING AND CARE
29 Cleaning the filters
30 Cleaning the spray arms
30 Cleaning the door
30 Caring for the dishwasher
30 Protect against freezing
31 How to maintain your dishwasher


SETTING UP YOUR DISHWASHER
32 Water supply and drain
34 Connection of drain hoses
34 Position the appliance
34 Start of dishwasher


TROUBLESHOOTING
35 Before calling for service
38 Information codes


APPENDIX
39 Specifications
40 Product dimension





Information codes



LC, LE
Leakage check
- Close the water supply valve. Go to your home's circuit breaker panel and set the dishwasher's circuit breaker switch to off. Then, contact the installer to repair.


4C, 4E
Water supply check
- Check if the water supply valve is closed.
- Check if the water supply is suspended.
- Check if the water inlet valve or line is frozen or clogged by foreign objects.

5C, 5E
Drain check
- Close the water supply valve. Check if the drain hose is clogged or folded.
- Close the water supply valve. Check if the drain hole inside the pump is clogged.


HC, HE
High temperature heating check
- Functional check. With the dishwasher empty, add detergent, and the run a cycle.
- If the issue continues, go to your home's circuit breaker panel, and set the  dishwasher's circuit breaker switch to off. Then, please contact a Samsung  service centre.


3C, 3E
Pump operation check
- Functional check. Turn off the dishwasher and restart.


PC, PE
Dividing valve check
- Displayed when the dividing valve is defective.


CA
Communications between main and sub PBAs check
- Displayed when the circuit is open or the communication wiring is broken.


bC2, bE2
Button check
- Displayed by pressing any button for more than 30 seconds.
- Try to bounce the buttons with fingers. In case of a touch screen, wipe off any moisture or foreign objects with a dry towel.
