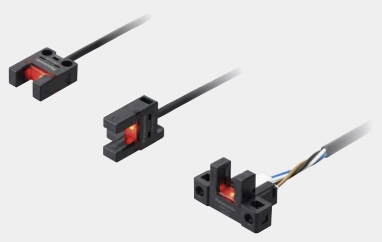

One step ahead in performance and mounting ease
Three protection circuits standard on all models [PM-25/45/65 SERIES]
All models are standardly equipped with the following protection circuits in their compact bodies.
These protection circuits minimize the possibility of sensor malfunctions caused by erroneous wiring.
1 Reverse supply polarity protection circuit
2 Reverse output polarity protection circuit
3 Output short-circuit protection circuit
Ample beam emitting / receiving distance of 6mm 0.236in [PM-25/45/65 SERIES]
The beam emitting and receiving sections are 0.5mm 0.02in thinner than those on our conventional models while their external dimensions are the same.
As a result, the distance between the beam emitting point and receiving point increased by 1mm 0.039in.
The wider distance means less possibility of collision between the sensing section and sensing object.
Industry’s first*! IP64 rating
*As of April 2017, in-company survey.
[PM-25/45 SERIES]

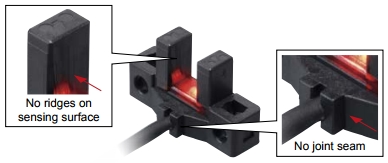

Our original integrated molding method has eliminated grooves and gaps on the sensing surface and main body, thus reducing the possibility of malfunctions caused by splashing water or dust.
